Gallbladder and Biliary Pathology

Gallbladder

  • Pear shaped
  • Normally 7-10 cm length
  • <4cm diameter
  • Wall <3mm
  • Fasting 6-8hrs

The gallbladder is an oblong pear shaped structure located on the underside of the liver. It is located at the level of the middle hepatic vein aka Cantlie’s line between segments IV and V. The normal distended gallbladder is approximately 7-10 cm in length and 4 cm in diameter. The capacity is usually 50 ml(1.8 fl oz) of bile. The GB is divided into neck, body and fundus, sonographic appearance is anechoic with an echogenic wall.

Increased through transmission is seen posterior to the gallbladder. The GB can be folded on itself in the shape of an S or have folds, a pouch in the fundus (Phyrigian cap) a pouch in the neck (Hartman’s pouch) and mucosal projections in the cystic duct (spiral valves of Heister).

Scanning the GB should include RUQ images of the Liver, biliary tree and gallbladder in sagittal and transverse planes.

Things to be aware of are situs inversus and heterotaxy where the GB can be found on the opposite side of the body or midline. Agenesis which is rare and can be associated with biliary atresia and other bile duct anomalies. Also gallbladder duplication, which is rare. Intrahepatic gallbladder is a failure of migration during fetal development. A GB that is covered by visceral peritoneum may exhibit increased motility which can lead to volvulus. A contracted GB can give the appearance of a thickened wall, but this is a normal finding and should not be confused for true GB wall thickening.

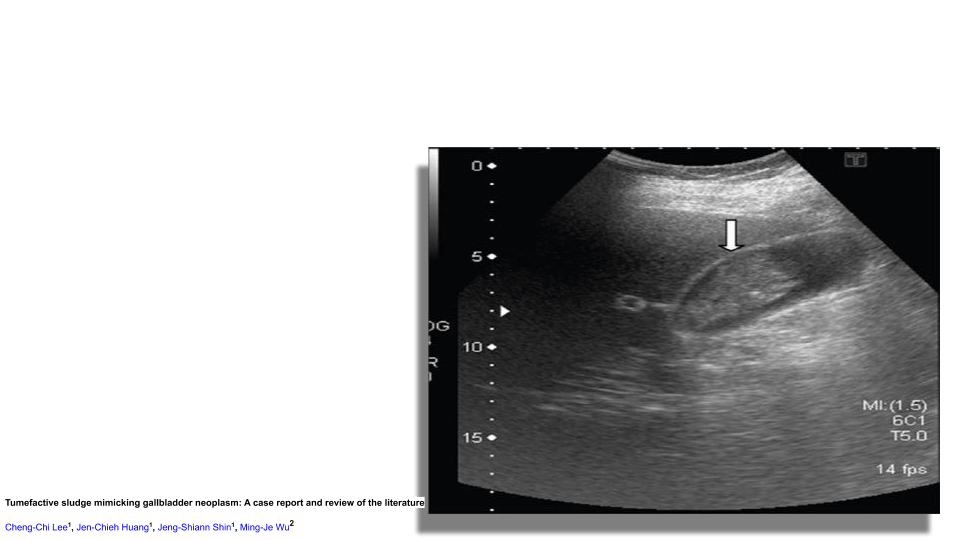

Sludge

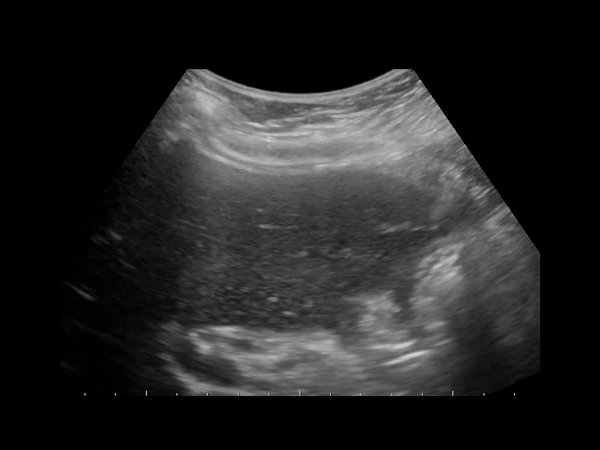

Gallbladder sludge with fatty liver
  • biliary sand/microlithiasis
  • precursor to stones
  • cholecystitis, colic, pancreatitis

Biliary sludge is a common finding on GB sonography. It is mainly comprised of calcium bilirubinate granules and lesser amounts of cholesterol crystals. It can be asymptomatic. Risk factors are rapid weight loss, gastric surgery, total parenteral nutrition (tpn) in fact you see it quite frequently in ICU patients that are receiving tpn. Some medicines may predispose to sludge like Rocephin. It is considered a precursor to stone development, in one study 5-15% of patients with sludge developed gallstones.

On ultrasound you’ll see low level echoes to echogenic debris that layers in the dependant part of the GB and is mobile with patient position. Sludge may aggregate into clumps which may simulate masses or polyps. This is known as tumefactive sludge. The gallbladder may also be completely filled with sludge making the whole GB complex isoechoic to the liver known as hepatization.

Cholelithiasis (Gallstones)

  • common
  • 6% men 9% women
  • cholesterol
  • black pigment stones (hemolysis)
  • brown pigment stones (infectious)

Gallstones typically consist of a mixture of cholesterol, calcium bilirubinate, and calcium carbonate. Gallstones can be found in children though it is less common, there are even cases of gallstones in utero. Pediatric patients who have hemolytic anemia, such as sickle cell disease and spherocytosis have an increased risk for developing gallstones, particularly bilirubin stones from the breakdown of RBC’s.

Risk factors for cholelithiasis are:

  • obesity
  • pregnancy
  • gestational diabetes
  • estrogen therapy
  • oral contraceptive use
  • rapid weight loss
  • hemolytic disorder
  • total parenteral nutrition

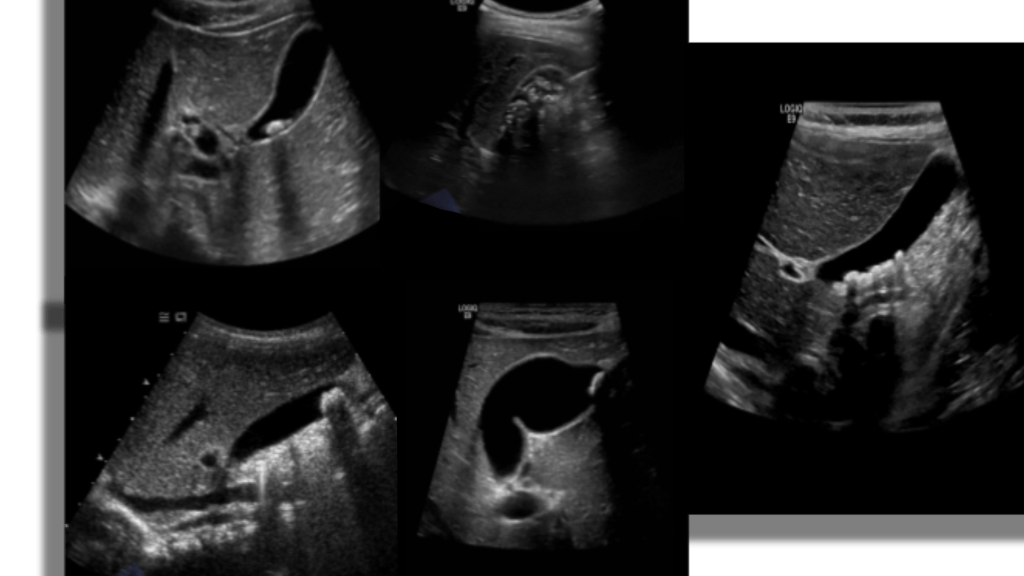

Sonographically you’re going to see echogenic mobile structures in the GB which can be solitary or numerous and vary in size from small to large. Stones will have posterior acoustic shadowing. The gallbladder can be completely filled with stones obscuring the lumen leading to the wall echo shadow WES sign.

Stone filled GB “wall echo shadow WES” sign

Mobility of the stone can be observed by scanning the patients in left lateral decubitus as well as supine. Scan the intra and extra hepatic biliary tree to look for dilatation, stones or both.

Rolling stone

Uncomplicated Gallstones

Asymptomatic patients typically don’t require treatment and stones in this population are often found incidentally. Biliary colic develops in about one in five patients.

If biliary colic develops, it is often mild initially, these patients may undergo elective cholecystectomy, a third of patients with one episode of biliary colic do not go on to have a recurrence in up to 2 years. One in five go on to develop complicated cholecystitis.

  • Acute cholecystitis
  • Choledocholithiasis
  • Pancreatitis
  • Acute cholangitis
  • Gallstone ileus
  • Mirrizi syndrome (common hepatic duct obstruction cause by extrinsic compression from an impacted stone)
  • GB cancer

Pitfalls in GB ultrasound:

  • improperly fasted GB obscuring really small stones
  • nearby duodenal gas shadowing
  • junctional mucosal fold
  • Severe fatty liver obscuring the GB

Cholecystitis

Cholecystitis is inflammation of the GB sudden onset of gallbladder inflammation is a common surgical emergency. The most common cause of cholecystitis is a gallstone in the neck or cystic duct.

Acalculous Cholecystitis

Represents 10% of all cases of Cholecystitis, thought to be caused by

GB stasis and ischemia or biliary blockage by sludge. The GB is typically distended with wall thickening >0.3cm, pericholecystic fluid and/or wall edema in the absence of ascites or hyperalbuminemia. AC usually presents in critically ill patients with sepsis and with jaundice without a clear cause. Complications are similar to calculous cholecystitis including emphysematous cholecystitis, gangrene and perforation.

GB wall thickening is not pathognomic for cholecystitis, there are several causes for GB wall thickening including:

  • cholecystitis
  • acalculous cholecystitis
  • non-fasting
  • post-prandial
  • cirrhosis
  • hepatitis
  • congestive right heart failure
  • hypoalbuminemia
  • ascites
GB wall thickening is not always due to cholecystitis

Gangrenous Cholecystitis

  • gallstones
  • ischemia, necrosis and perforation
  • 2-30 % of all cholecystitis

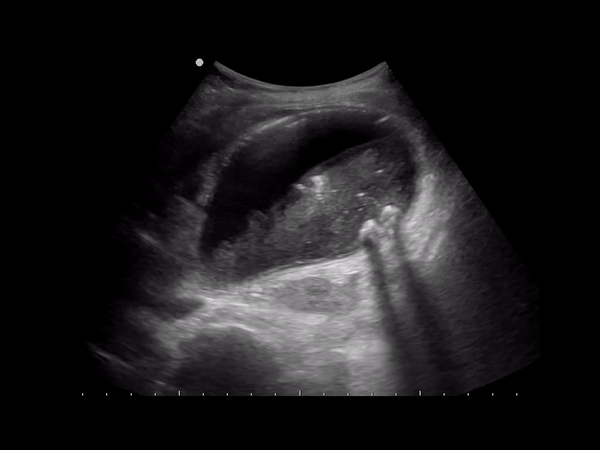

Gangrenous cholecystits with sludge, neck stone and sloughed membranes

GC is considered an evolution of cholecystitis. The incidence of GC ranges from 2% to 30% in all patients with acute cholecystitis. Gangrenous cholecystitis features focal areas of necrosis, bulges of the gallbladder wall, sloughed membranes, and ulcerative craters. GC can lead to GB wall perforation which can lead to increased morbidity and mortality due to peritonitis. This condition can be oftentimes indistinguishable from gallbladder empyema (pus filled inflamed GB) or xanthogranulomatous cholecystitis (from chronic inflammation).

Emphysematous Cholecystitis

  • infection with E. Coli, Clostridium
  • gas forms in the GB wall (echogenic with reverb, ring down artifact)
  • negative sonographic Murphy’s sign
  • common in diabetics
Emphysematous cholecystitis with sludge and stones

A form of cholecystitis caused by gas-forming organisms (Clostridium or E. coli). Occurs in 1% of cholecystitis cases, but can develop rapidly leading to perforation and mortality (15-25%). Sonographically you’ll see an inflamed gb with hyperechoic areas in the gb wall representing gas with reverb, dirty shadowing or ring down artifact.

Gallbladder polyps

A gallbladder polyp is a mural lesion that protrudes into the lumen of the gallbladder. Cholesterol polyps are the most common type of polyps. They typically measure <10mm and may be solitary or multiple. Sonographically you’ll see echogenic round lesions adherent to the GB wall. They will not have posterior acoustic shadowing.

Broadly categorized into 2 types:

Benign

  • cholesterol most common, adenomas, focal adenomyomatosis, inflammatory Hyperplasia
  • often <1cm

Malignant

(see Gallbladder carcinoma)

Primary sclerosing cholangitis is a risk factor for malignancy in the presence of polyps, especially rapid growing polyps, polyps >1cm, segmental mucosal calcifications, Anomalous PancreaticoBiliary Ductal Union (APBDU, patient age >50 and concurrent stones are all risk factors for malignancy.

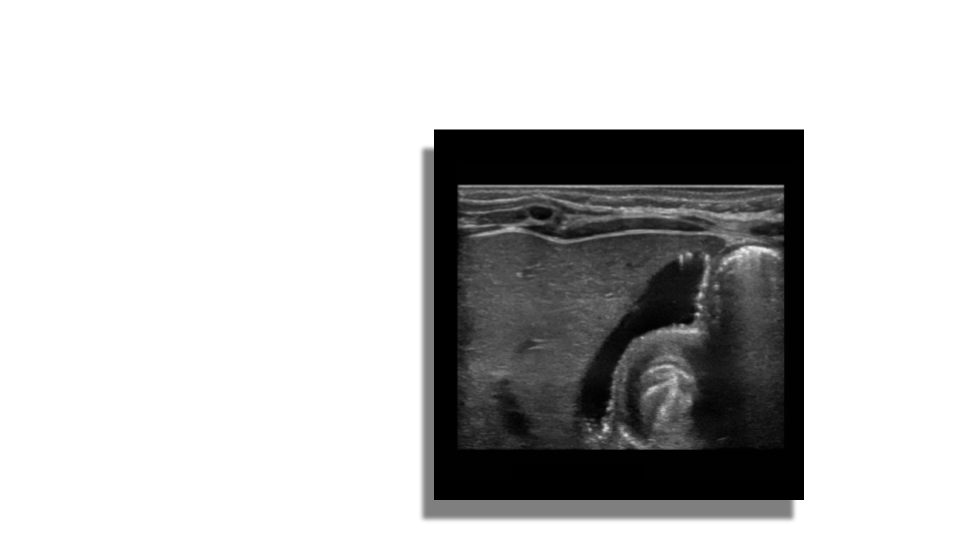

Adenomyomatosis

Adenomyomatosis is a benign condition in the epithelium of the GB wall. There is overgrowth of the mucosa, thickening of the muscular wall and formation of intramural diverticula known as Rokitansky-Aschoff sinuses. Within these cystic spaces biliary crystals can get trapped given the sonographic appearance of echogenic foci with comet tail artifacts posteriorly. The changes can be focal or diffuse.

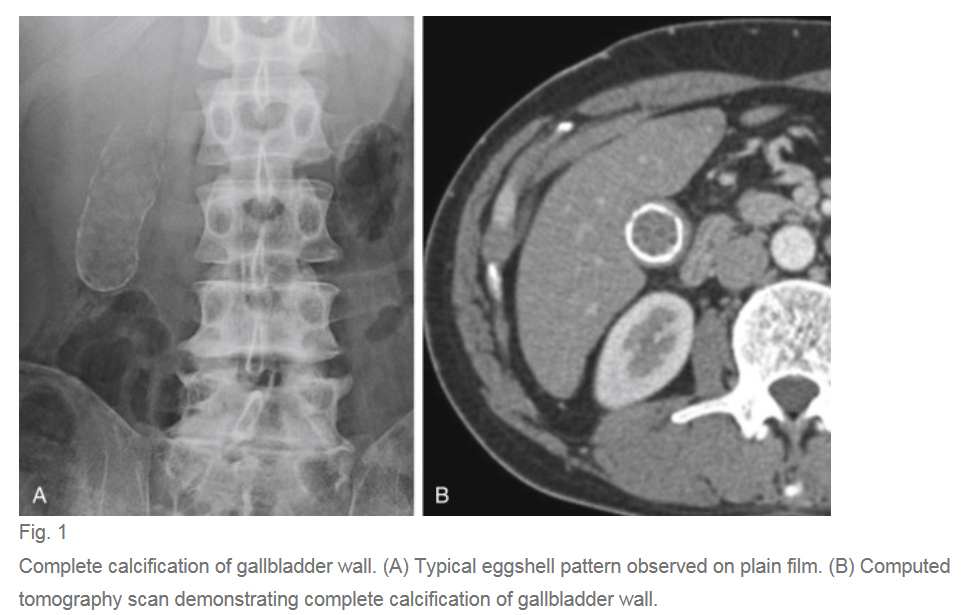

Porcelain Gallbladder

A calcified GB is known as porcelain GB, thought to be calcification from chronic inflammation, on ultrasound you’ll see circumferential increased echogenicity of the GB with shadowing. Porcelain GB can routinely be imaged on radiography. Calcification can be focal or diffuse. Originally it was always treated with cholecystectomy due to a purported high risk of developing GB cancer. However recent research suggests the incidence is not as high as previously thought.

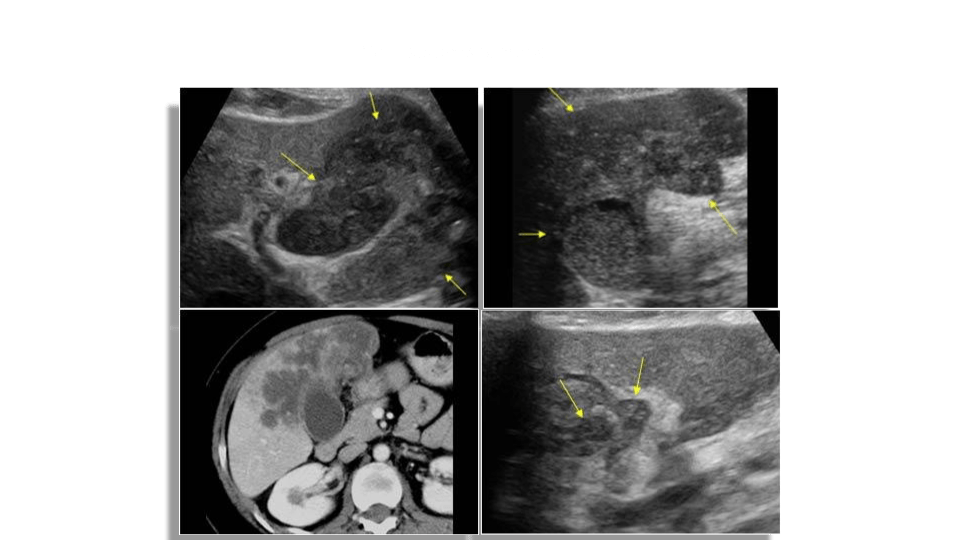

Gallbladder Carcinoma

Gallbladder carcinoma is the most common biliary tract malignancy, but it is relatively rare, they present as a primary lesion 98% (85% adenocarcinoma) and as metastasis in 2% (50% melanoma 20% lymphoma remainder HCC, RCC). There is increased risk in patients with gallstones and chronic cholecystitis.

Sonographically you’ll see a mural lesion extending into the gb lumen, may be focal thickening or polypoid with a stalk. Color and spectral doppler may show vascular flow within the mass and stalk.

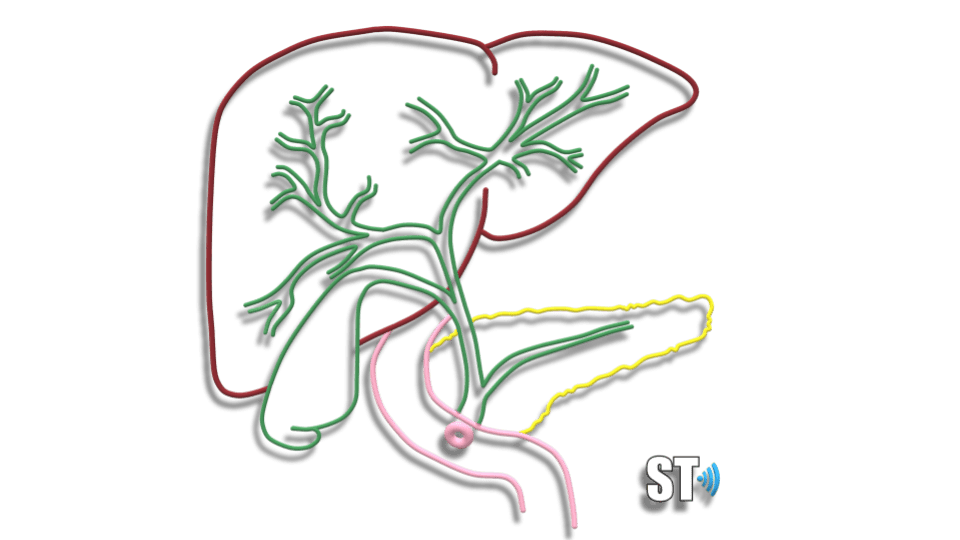

Biliary

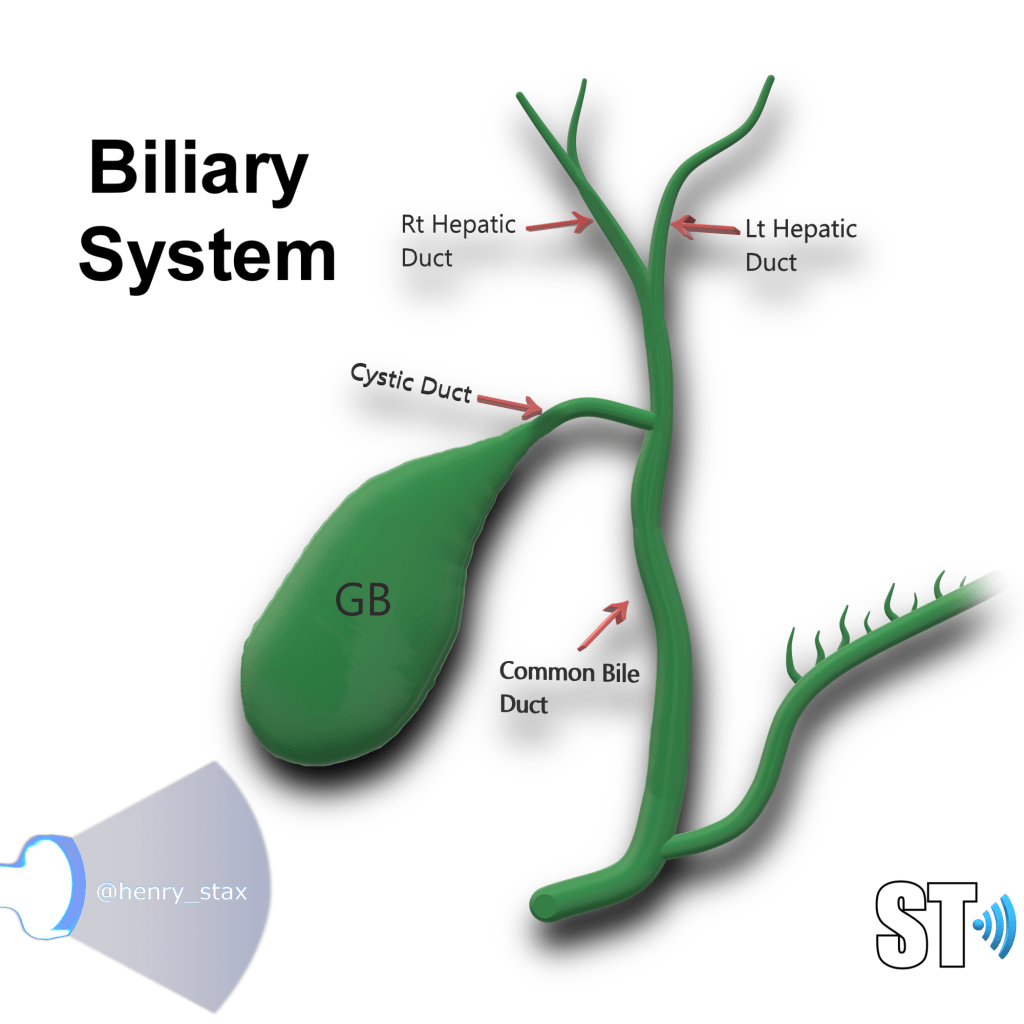

The biliary system is made of the cystic duct which comes from GB neck meeting with the hepatic duct forming the common bile duct (CBD) which travels through the hepatoduodenal ligament to the head of the pancreas meeting with the pancreatic duct. The terminal end is at the ampulla of Vater in the duodenum. The normal caliber of the CBD is <7mm (mean 3.4mm). Sonographically it can be imaged at the porta hepatis with the portal triad (portal vein, hepatic artery, CBD) and be differentiated from the vessels by using color Doppler. It can also be imaged the head of the pancreas posterolateral to the gastroduodenal artery.

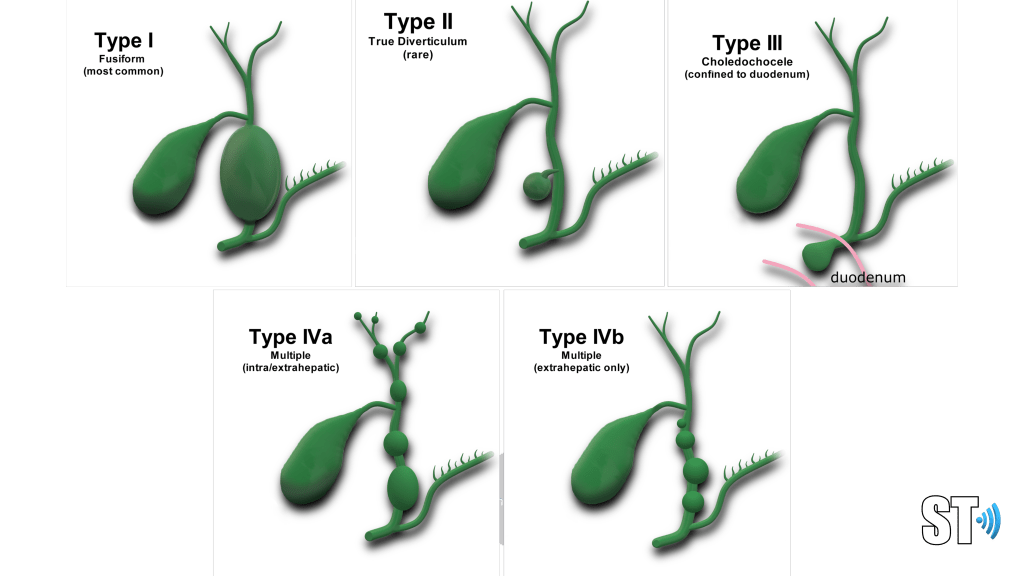

Choledochal Cysts

Choledochal cysts are a congenital dilatation of the bile ducts. It is more common in East Asian populations. It is most commonly discovered in childhood, though up to 20% can be found in adults.

The disease is classified into 5 types:

  • Type I
    • Fusiform dilatation of the CBD (most common)
  • Type II
    • True diverticulum of the bile ducts (rare)
  • Type III
    • Choledochoceles confined to the intraduodenal portion of the CBD
  • Type IV
    • Multiple cysts subdivided into
      • IVa multiple intra/extrahepatic
      • IVb extrahepatic only
  • Type V
    • Caroli’s disease

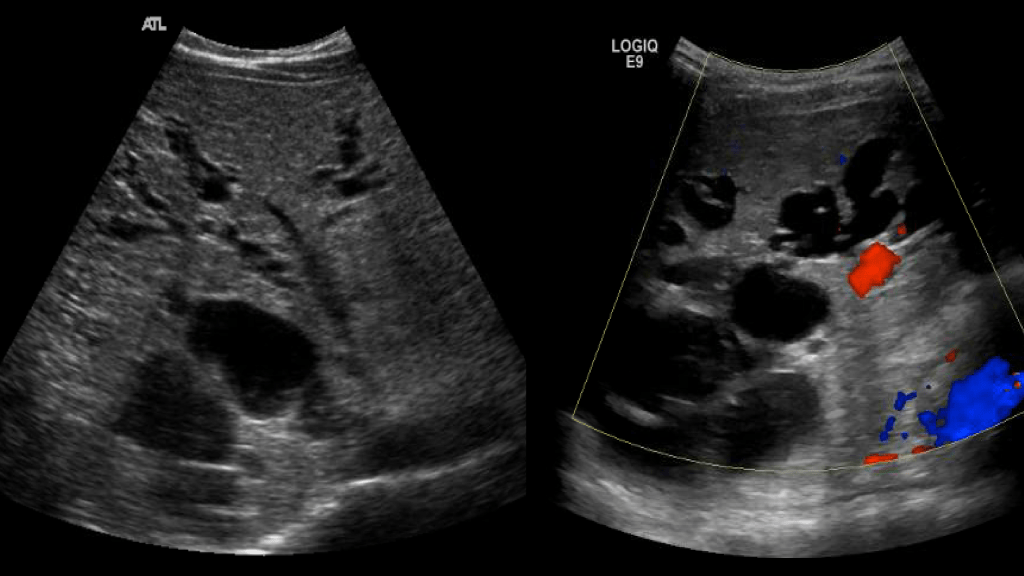

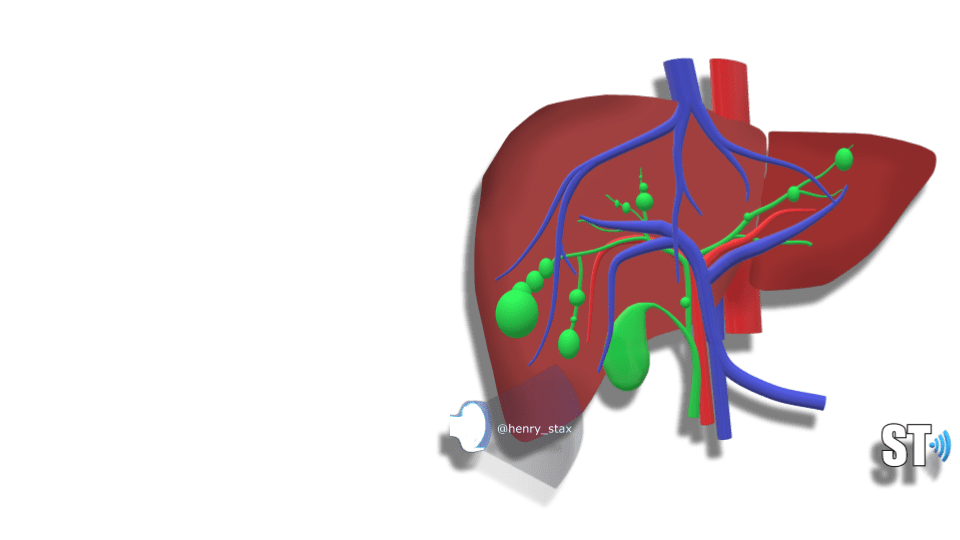

Caroli’s disease

Rare congenital disease of the intrahepatic biliary tree which leads to non obstructive saccular or fusiform (less common) dilatation of the intrahepatic bile ducts. There’s 2 types

  • Caroli’s disease
    • Dilatation of larger ducts
  • Caroli’s syndrome
    • Smaller ducts, more common, associated with hepatic fibrosis
Caroli’s disease

Bile duct dilatation can lead to stasis of bile and sludge/stone formation. There is a predisposition to develop ascending cholangitis. It is common in patients with ARPKD and can be associated with hepatic fibrosis.

Biliary Atresia

  • ⅓ of cases of neonatal cholestatic jaundice
  • Most common cause of death and reason for liver transplantation in children
  • Occurs in 10-15% of other congenital anomalies
  • Associated with polysplenia syndrome
  • Jaundice and acholic stools

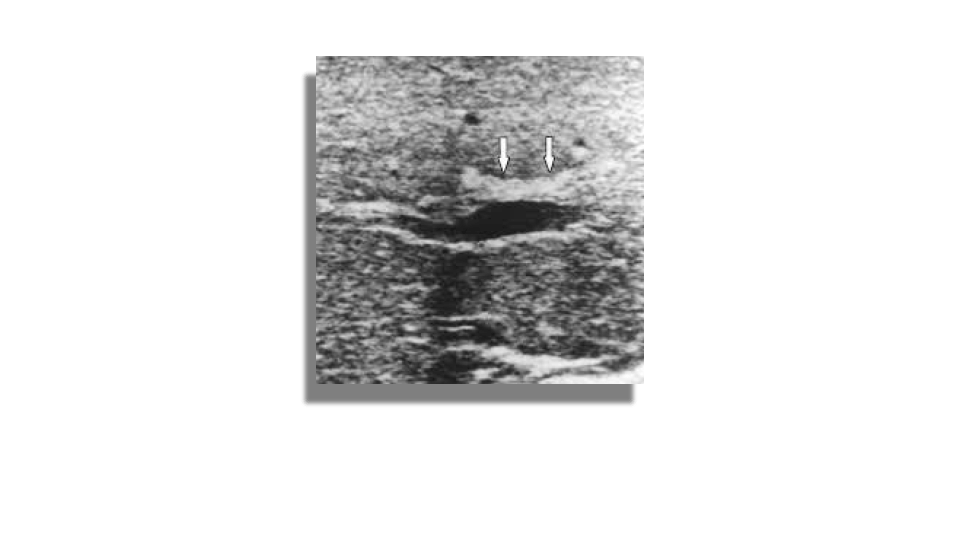

Triangular cord sign

BIliary atresia is a congenital obliteration of the extrahepatic biliary system which results in obstruction of bile flow. The incidence in the US is 1 per 10,000 -15,000 live births. It is more common in asian populations. Typical symptoms are jaundice, dark urine and light stools. Sonography can be used to rule out other causes of jaundice, occasionally ultrasound can show an absent or small gallbladder and the triangular cord sign which represent the fibrous remnant of the extrahepatic bile duct. HIDA scan is better at evaluating for biliary atresia.

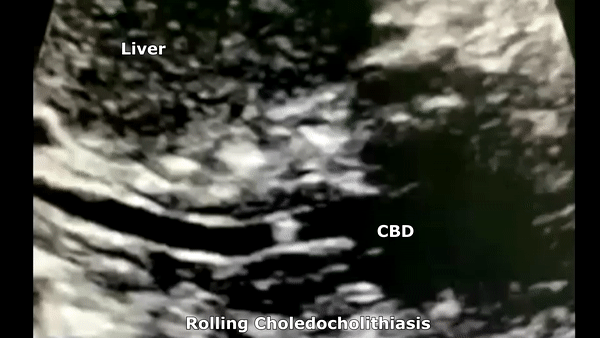

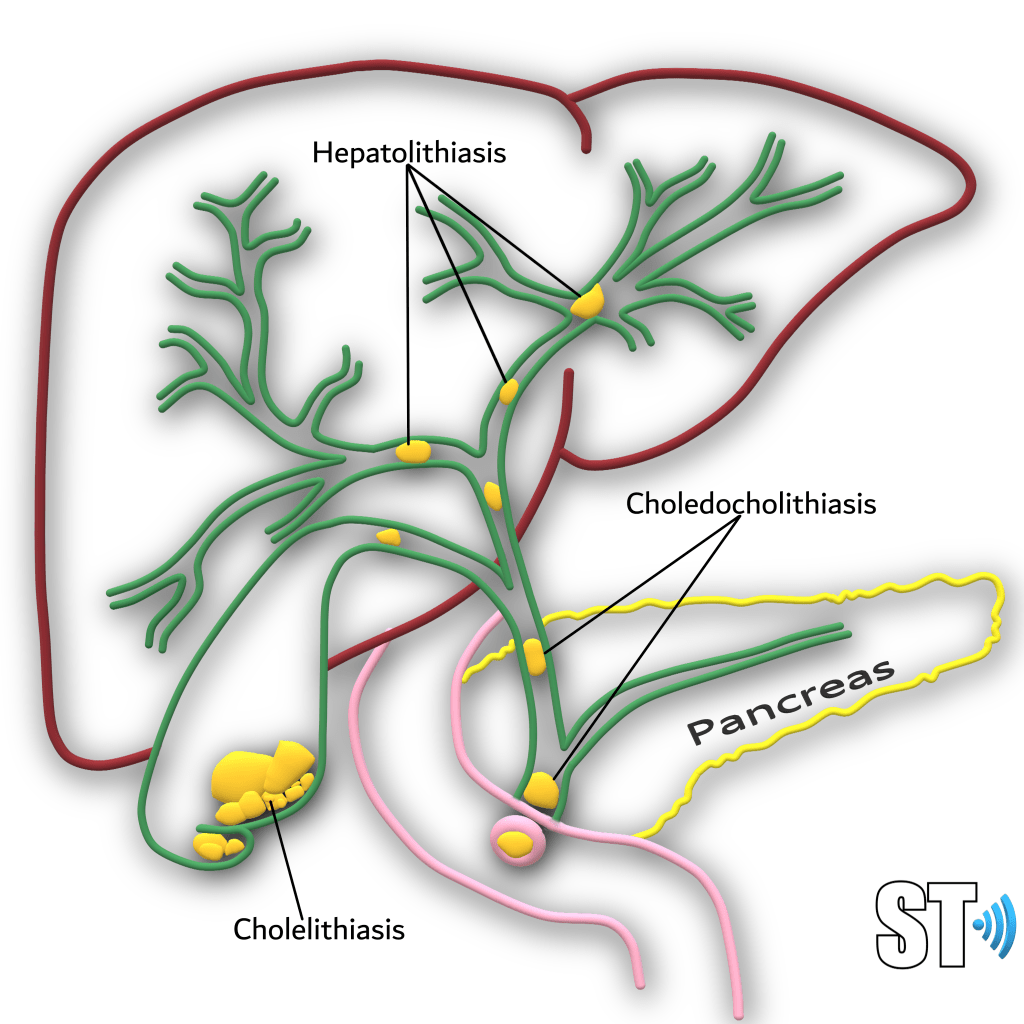

Choledocholithiasis

  • Bile duct/CBD stones
  • Biliary dilatation
  • Asymptomatic in up to 50%

Choledocholithiasis is the presence of stones in the common bile duct.

  • Primary
    • Stones from de novo in the CBD
      • Typically brown pigment stones made of calcium bilirubinate
  • Secondary
    • Form in the gallbladder then move to the CBD
      • Mostly cholesterol stones

Patients may be asymptomatic (up to 50%) or may have symptoms of biliary colic in the ruq or epigastrium. Other symptoms like pruritus, pale stools and intermittent jaundice may be present. On sonography will see biliary dilatation, depending on the location and size of the stones there may be GB enlargement and intrahepatic biliary dilatation as well. There will be echogenic stones with posterior acoustic shadowing. There may be one stone or multiple. At times the ductal stone may be distal to be observed with US, as such an Endoscopic Retrograde Cholangiopancreatography (ERCP) or Magnetic Resonance Cholangiopancreatography (MRCP) may be necessary for diagnosis.

  • Risk factors
  • Sclerosing cholangitis
  • Caroli’s disease
  • Hemolytic anemia
  • Prior biliary surgery
  • Parasitic infections

Hemobilia and Pneumobilia

Hemobilia is blood within the bile ducts and is associated with biliary trauma, usually iatrogenic (i.e. biopsy, surgery). Other etiologies include cholangitis, vascular malformations, abdominal traumas and malignancies. The appearance of blood within the biliary tree is similar to blood clots seen in other parts of the body. Often you’ll see intraluminal medium level echoes or hyperechoic material. More acute thrombus is typically less echogenic.

Pneumobilia is air within the biliary system. Also can be a sequela of biliary procedures, it can also be associated with emphysematous cholecystitis. Sonographically you’ll see linear and punctate echogenic foci with posterior dirty shadowing and ring down artifact.

Cholangitis

Cholangitis refers to inflammation or infection of the CBD. Bile is normally sterile but may become infected due to stasis or obstruction which encourages the growth of bacteria. Bacteria may ascend to the biliary tree leading to ascending cholangitis. Anastomosis of the bile duct to the small intestine such as in a Whipple surgery may lead to cholangitis. Patients with cholangitis often present with RUQ and epigastric pain with pain radiating to the right shoulder.

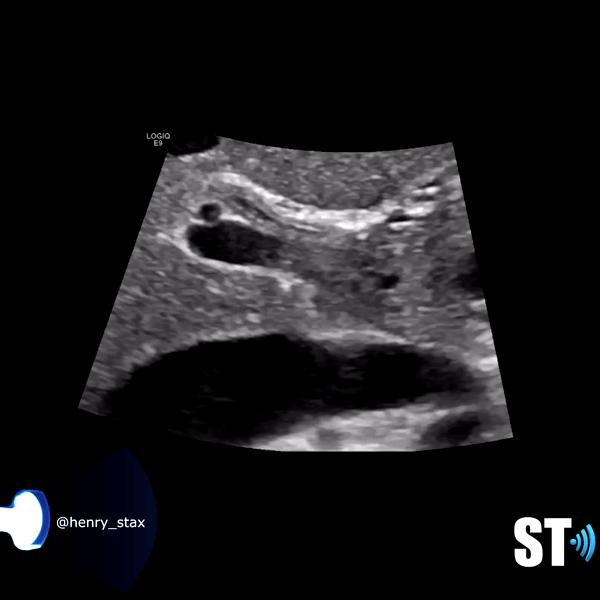

Thickened bile duct in cholangitis

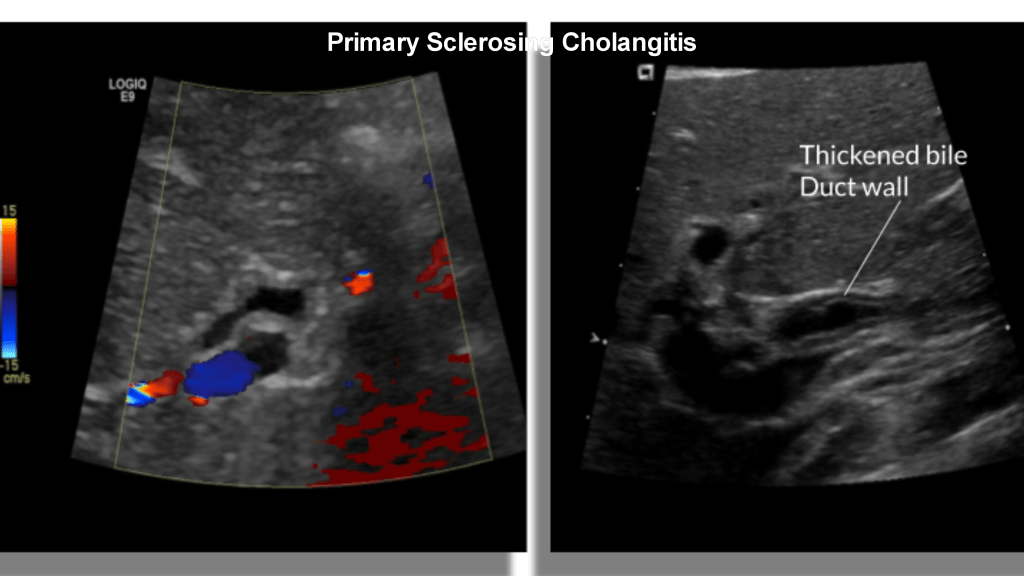

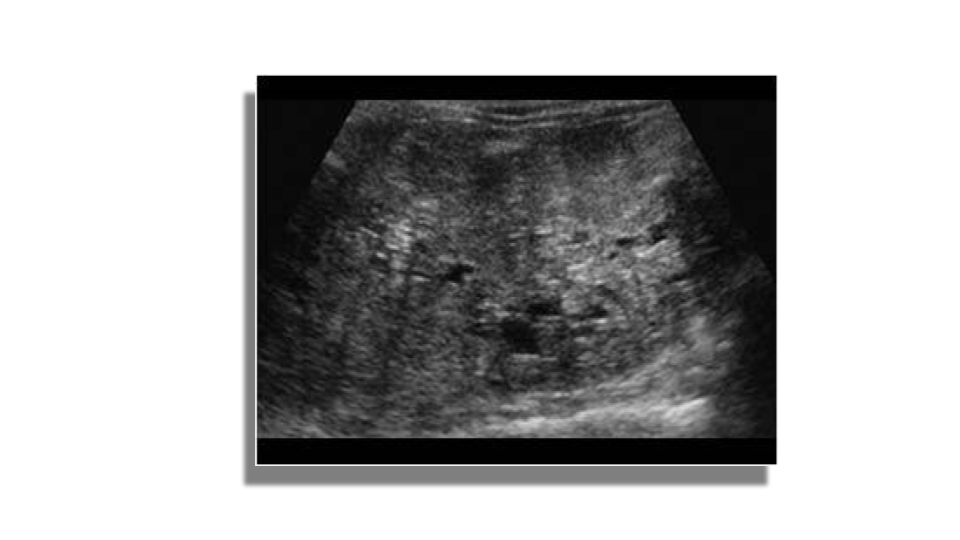

Primary Sclerosing Cholangitis

  • Inflammation of the Bile ducts
  • More common in men
  • Associated with autoimmunity
  • Can lead to cholangiocarcinoma

Primary sclerosing cholangitis is a chronic inflammatory condition that occurs in the absence of choledocholithiasis or prior bile surgery. It is thought to be autoimmune in origin and is associated with inflammatory bowel disease, Langerhan cell histiocytosis, immunodeficiency, psoriasis and cystic fibrosis. It tends to be more common in males. Sonographically there is irregular circumferential thickening of the bile duct walls, luminal narrowing, strictures and dilatations. Cholangiocarcinoma develops in 7-30% of cases.

Cholangiocarcinoma

  • Rare
  • Associated with gallstones
  • Primary Sclerosing Cholangitis (most common risk factor in the West)
  • 10-25% at Porta Hepatis (Klatskin)
  • Mostly adenocarcinoma

Cholangiocarcinoma or bile duct cancer is a rare tumor that originates from the epithelium of the bile duct.It is the second most common liver cancer in the world, after the more common hepatocellular carcinoma.

Source: ultrasoundcases.info

it’s incidence increases with age especially after 50 years with peak incidence in the 8th decade. Its incidence in the US is 2.1 – 3. Per 100,000 population. It is classified by anatomical location.

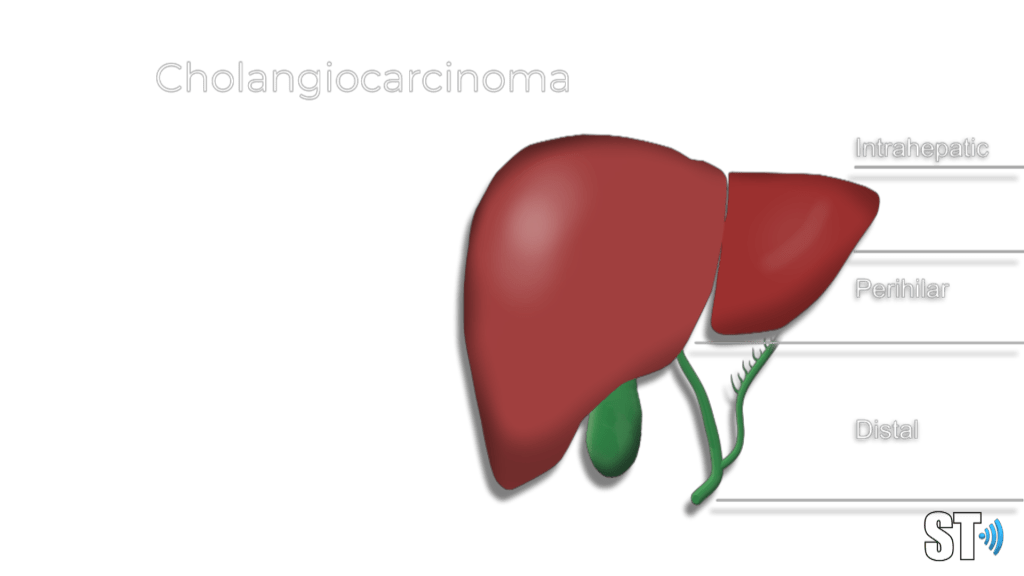

Intrahepatic

Perihilar

Bismuth-Corlette classification of perihilar cholangiocarcinoma

  • type I
    • limited to the common hepatic duct, below the level of the confluence of the right and left hepatic ducts
  • type II
    • involves the confluence of the right and left hepatic ducts
  • type IIIa
    • type II and extends to the bifurcation of the right hepatic duct
  • type IIIb
    • type II and extends to the bifurcation of the left hepatic duct
  • type IV
    • extending to the bifurcations of both right and left hepatic ducts

Distal

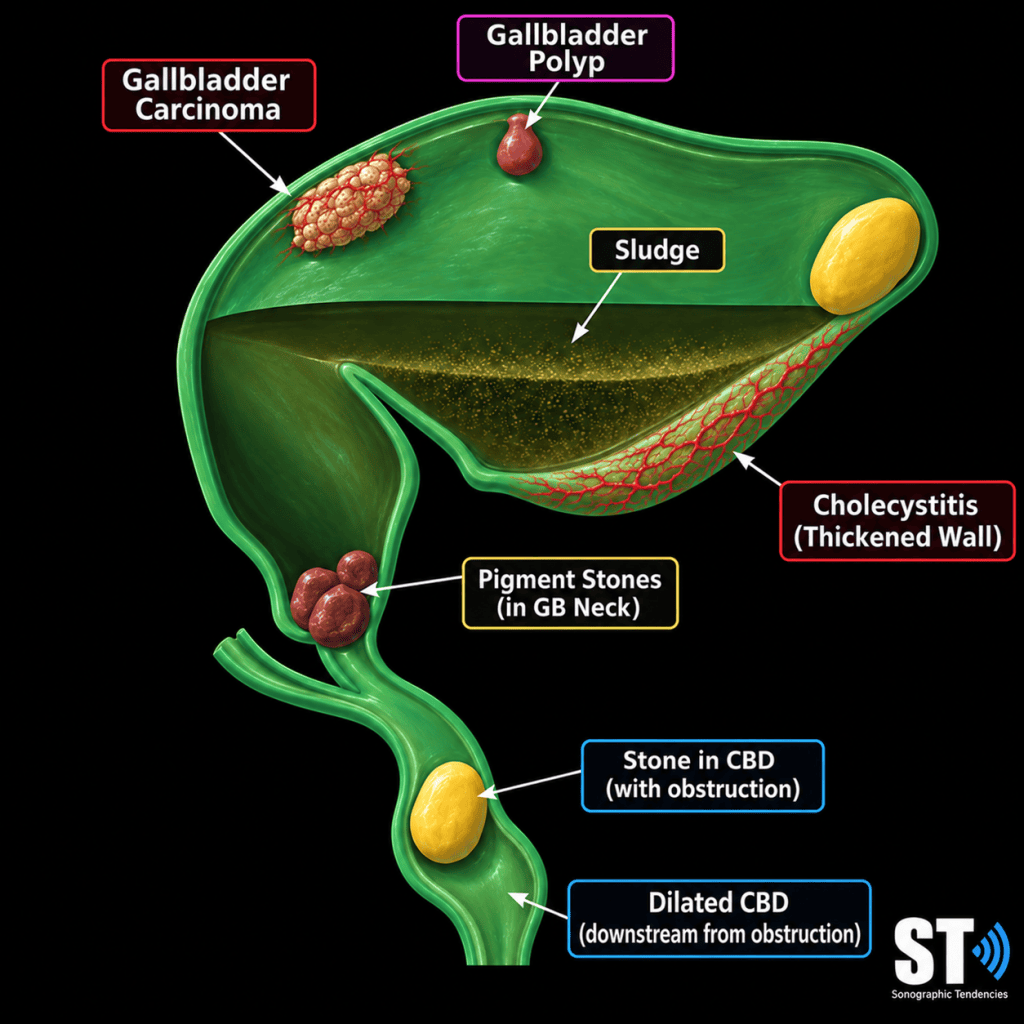

Gallbladder infographic

Sonographically the most common findings in patients with cholangiocarcinoma is biliary dilatation. Papillary tumors resemble polypoid intraluminal masses. Nodular cholangiocarcinoma manifests as a discrete smooth mass associated with wall thickening. Infiltrating cholangiocarcinoma is the most common type but is difficult to evaluate with sonography.

Sources:

  1. Wang, H.-P., Wu, M.-S., Lin, C.-C., Chang, L.-Y., Kao, A.-W., Wang, H.-H., & Lin, J.-T. (1998). Pancreaticobiliary diseases associated with anomalous pancreaticobiliary ductal union. Gastrointestinal Endoscopy, 48(2), 184–189. doi: 10.1016/s0016-5107(98)70161-0
  1. Önder A, Kapan M, Ülger BV, Oğuz A, Türkoğlu A, Uslukaya Ö. Gangrenous cholecystitis: mortality and risk factors. Int Surg. 2015;100(2):254–260. doi:10.9738/INTSURG-D-13-00222.1
  2. Cameron, John, and Andrew Cameron. Current Surgical Therapy 13E. S.L., Elsevier, 2020.
  1. Choi, Jin-Young, et al. “Hilar Cholangiocarcinoma: Role of Preoperative Imaging with Sonography, MDCT, MRI, and Direct Cholangiography.”
  2. American Journal of Roentgenology, vol. 191, no. 5, Nov. 2008, pp. 1448–1457, 10.2214/ajr.07.3992. Accessed 23 Feb. 2020.
  1. Costi, Renato. “Diagnosis and Management of Choledocholithiasis in the Golden Age of Imaging, Endoscopy and Laparoscopy.” World Journal of Gastroenterology, vol. 20, no. 37, 2014, p. 13382, 10.3748/wjg.v20.i37.13382. Accessed 23 Feb. 2020.
  1. Fakhry, J. “Sonography of Tumefactive Biliary Sludge.” American Journal of Roentgenology, vol. 139, no. 4, Oct. 1982, pp. 717–719, 10.2214/ajr.139.4.717.
  1. Kliegman, Robert M, and Et Al. Nelson Textbook of Pediatrics. Philadelphia, Elsevier, 2020, p. Chapter 392, 2136-2139. Cystic Diseases of the Biliary Tract and Liver.
  1. Marvin Herbert Sleisenger, et al. Sleisenger & Fordtran’s Gastrointestinal and Liver Disease : Pathophysiology, Diagnosis, Management. Philadelphia, Pa, Saunders-Elsevier, Cop, 2016.
